ARB HIGH OUTPUT COMPRESSOR

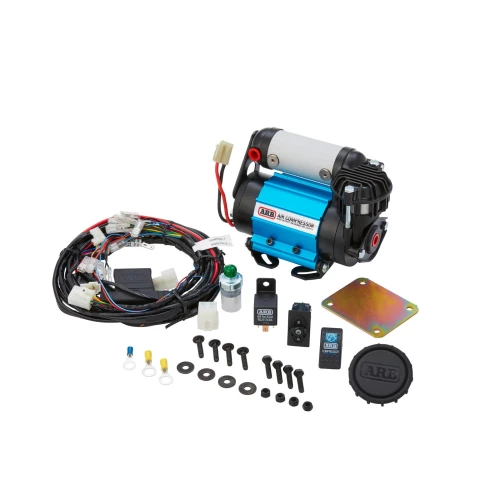

The most popular in our range, the ARB High Output Air Compressor has been constructed entirely of lightweight, high-grade materials and is available in both portable and vehicle mounted configurations. With a class-leading flow rate, this compressor has been designed for Air Locker activation (on-board model), fast tyre inflation and a range of other functions whether they be for work or play. The vehicle mounted kit comes with a full wiring loom and mounting hardware for easy installation.
ADDITIONAL FEATURES
- Sealed for moisture and dust resistance
- Hard anodised cylinder bore for reduced friction
- Teflon-impregnated carbon fibre piston seal for maximum trouble free life
- Anodised mounting bracket dissipates motor heat and allows compressor to be repositioned 180 degrees on vehicle mounted models
- Quality components for quiet operation and extra long life
- Constructed entirely of lightweight, high strength engineering grade materials
- Over-pressure safety valve equipped
- Motor is internally thermal protected against extreme temperature damage
- Heavy duty maxi-fuse equipped for professional in-line circuit protection
- On-board model available in either a 12V or 24V configuration
- Type Single Compressor
- Tyre Inflation Fast
- DC voltage [V] 24
- Duty cycle to [%] 50
- Pressure to [kPA] 0
- Current rating at 20°C [A] 7.1
- Volume Flow Up To [l/min] 87.2
- Pressure to [kPA] 200
- Current rating at 20°C [A] 12.6
- Volume Flow Up To [l/min] 65.9
- Switch with pressure differential switch
- Overheating protection Yes
- Filter Type Particulate Filter
- Packaging length [cm] 23
- Packaging width [cm] 22
- Packaging height [cm] 13
- Gross Weight [kg] 4.86
