FEATURES & BENEFITS

• 3mm pressed and folded sheet steel adds more strength than a standard folded
• sheet
• Laser cut sheet steel
• UVP panels zinc plated and powder coated in a silver textured finish. All steel
• components are protected with either powder coat or zinc plating
• Recessed mounting bolts are protected and easy to remove for vehicle servicing

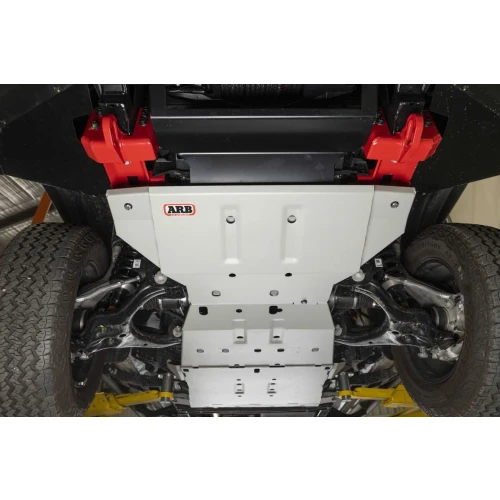

Front panel protects:

• Power steering
• Stabiliser bar
• Engine

Differential / sump panel protects:

• Front differential and mounts
• Rear of engine sump
• Transmission panel
• Transfer case panels

Attach with a chassis mounted transfer case support cross member.
Compatible with ARB Forged Recovery Point PN 2840060 and 2840070
Approximate weight of the UVP and fitting kit is 54kg. Front panels weighs approximately 12kg, differential / sump panel weighs approximately 12kg, transmission panel weighs approximately 22kg and transfer case cross member
weighs approximately 8kg
Kit includes illustrated fitting instructions
